110kW/174kWh Commercial Energy Battery Storage System: Empowering Businesses with Next-Level Energy Solutions
In today’s fast-evolving energy landscape, businesses need innovative tools to manage commercial electricity, harness renewable energy, and ensure operational reliability. Enter the DJENERGY 110kW/174kWh Commercial Energy Battery Storage System—a cutting-edge battery energy storage system (BESS) designed to meet the diverse demands of commercial and industrial (C&I) energy environments. This powerhouse integrates seamlessly with solar battery storage systems, delivering unparalleled efficiency, scalability, and resilience for companies aiming to optimize solar power with battery backup.

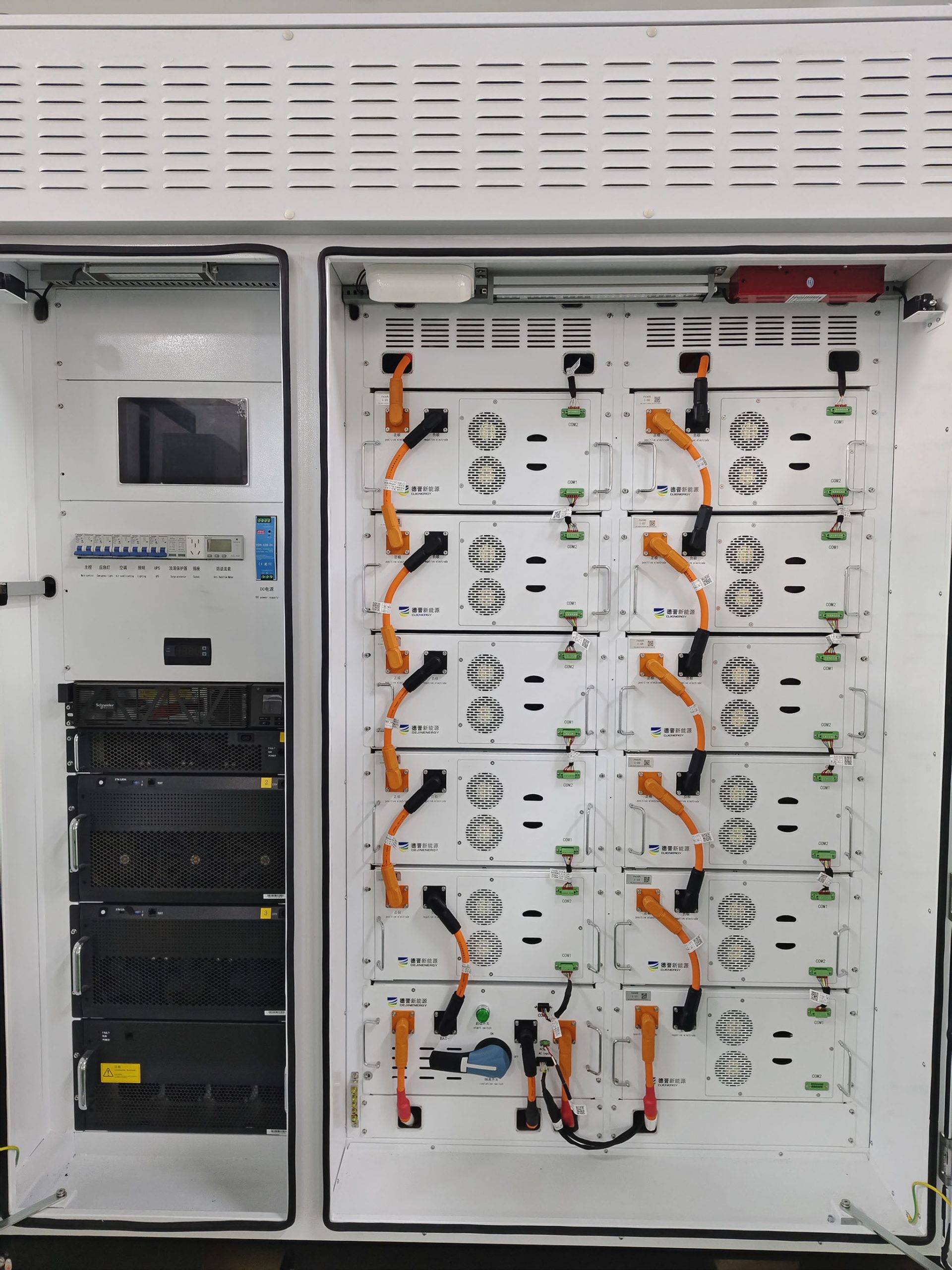

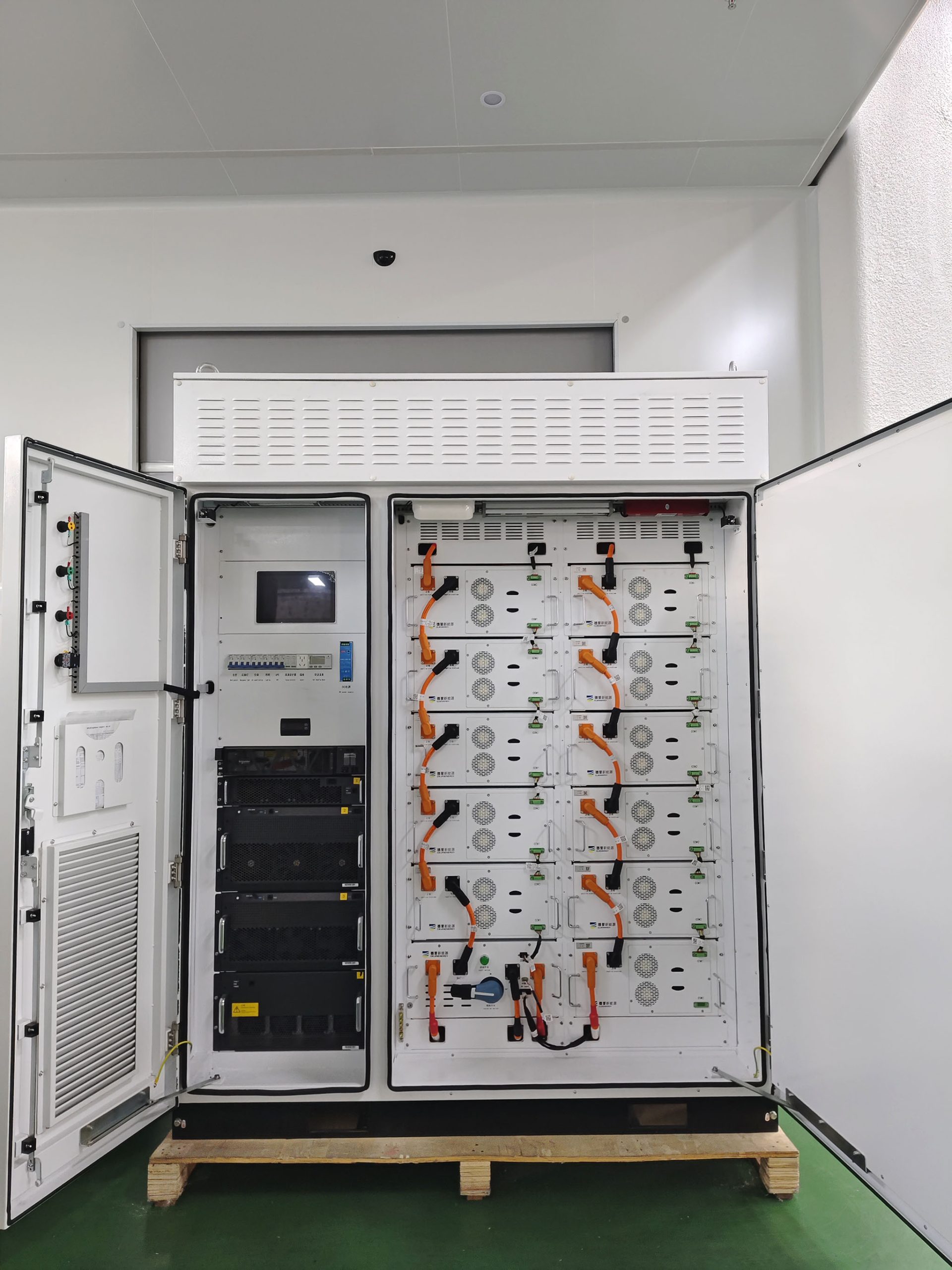

DJENERGY 110kW/174kWh all-in-one C&I ESS integrates battery, PCS, PV input and energy management interfaces in one cabinet for commercial and industrial sites. It is designed for peak shaving, PV self-consumption, time-of-use shifting, and backup operation in grid-connected or hybrid microgrid scenarios.
| DC-Side Parameters | ||||||||||||
| Cell Specification | CBA54173200-206Ah | |||||||||||
| Nominal Capacity | 174kWh | |||||||||||
| Nominal Voltage | 844.8V | |||||||||||
| Battery Current | 206A | |||||||||||
| Depth of Discharge (DoD) | 95% | |||||||||||
| DC Component | <0.5% | |||||||||||
| Battery Temperature Control Method | Air Cooling | |||||||||||
| AC-Side Parameters | ||||||||||||
| Connection Type | Three-phase Four-wire | |||||||||||
| Power Factor | -1~1 | |||||||||||
| AC Side Rated Power | 105kW | |||||||||||
| AC Side Max.Power | 116kW | |||||||||||
| AC Side Rated Voltage | 400/230Vac | |||||||||||
| Ac Side Max. Current | 167A | |||||||||||
| Rated Grid Frequency | 50/60Hz | |||||||||||
| Cooling Method | Forced Air Cooling | |||||||||||
| System Communication Interface (External) | RS485/CAN | |||||||||||
| System Communication Protocol(External) | Modbus-RTU/CAN | |||||||||||
| Max.Efficiency | 98.5% | |||||||||||
| System Parameters | ||||||||||||
| C-rate(Charge/Discharge) | ≤1C | |||||||||||
| Cycle Life | 7000 | |||||||||||
| IP Rating | IP54 | |||||||||||
| Operating Temperature Range | -20~60°C | |||||||||||
| Operating Humidity Range | 0~95%RH(Non-condensing) | |||||||||||
| Operating Altitude | 2000m | |||||||||||
| Dimensions(WxDxH) | 1715(W)mmx1228(D)mmx2175.5(H)mm | |||||||||||
| Fire Suppression System | Aerosol | |||||||||||
| Grid input Voltage | 400/230Vac | |||||||||||
| Grid Input Frequency | 50Hz/60Hz | |||||||||||
| Grid Charging Power | 105kW | |||||||||||
| DC input Para meters | ||||||||||||
| Max. Input Voltage | 900V | |||||||||||
| Start-up Voltage | 250V | |||||||||||
| Rated input Voltage | 600V | |||||||||||
| MPPT Voltage Range | 200V~850V | |||||||||||
| Number of MPPT Trackers/Number of Strings per MPPT | 4/3 | |||||||||||
| Max. Input Current per MPPT | 50A | |||||||||||
| Max.Short-circuit Current per MPPT | 60A | |||||||||||
| AC Output Parameters | ||||||||||||
| Max. Output Current | 167A | |||||||||||
| Rated Output Power | 105kW | |||||||||||
| Max. Active Power | 116kW | |||||||||||
| Rated Output Frequency | 50Hz/60Hz | |||||||||||
| Rated Grid Voltage | 230Vac/400Vac,3L/N/PE, 3L/PE | |||||||||||
| Protection | ||||||||||||
| DC Reverse Polarity Protection | Yes | |||||||||||
| Anti-islanding Protection | Yes | |||||||||||
| Output Short-circuit Protection | Yes | |||||||||||
| Leakage Current Detection | Yes | |||||||||||
| Insulation Resistance Detection | Yes | |||||||||||
| Ground Fault Detection | Optional | |||||||||||
| Grid Detection | Optional | |||||||||||
| String Current Detection | Yes | |||||||||||
| Surge Protection | Type ll | |||||||||||
| DC Arc-fault Protection | Optional | |||||||||||
| Display and Communication | ||||||||||||
| Display | LCD+APP | |||||||||||
| Communication | Standard Features: WiFi/Bluetooth/4G | |||||||||||
| GeneralParameters | ||||||||||||
| Dimensions (WxHxD) | 483(W)mmx226.5(H)mmx831.5(D)mm | |||||||||||
| Weight | 110kg | |||||||||||
| OperatingTemperature Range | -20~60°C | |||||||||||
| Cooling Method | Intelligent Air Cooling | |||||||||||
| IP Rating | / | |||||||||||
| Max. Operating Altitude | 2000m | |||||||||||
| Relative Humidity | 0~85% | |||||||||||
110kW/174kWh: A Pinnacle of C&I Energy Innovation
The DJENERGY 110kW/174kWh is a high-performance battery storage system engineered for businesses that demand more from their energy infrastructure. With a power output of 110 kilowatts (kW) and a storage capacity of 174 kilowatt-hours (kWh), it’s built to handle the heavy lifting of commercial electricity needs while supporting renewable energy integration through solar and battery systems. Leveraging advanced lithium iron phosphate (LFP) technology, this solar battery storage system offers a blend of safety, durability, and efficiency that sets it apart in the market.
This energy storage system isn’t just about storing power—it’s about transforming how businesses approach C&I energy management. From reducing reliance on volatile grid pricing to providing battery backup for solar during critical moments, the DJENERGY 110kW/174kWh empowers companies to achieve energy independence, sustainability, and cost-effectiveness in one robust package.
Core Features of the DJENERGY 110kW/174kWh Battery Storage System
The DJENERGY 110kW/174kWh is packed with advanced features tailored to commercial energy applications. Here’s what makes it a standout among energy storage systems:
- Exceptional Power and Storage Capacity
- 110kW Output: Provides steady, high-power delivery for demanding operations.
- 174kWh Capacity: Stores ample energy to support extended use, ideal for solar power with battery backup scenarios.
- Cutting-Edge LFP Battery Technology
- Employs lithium iron phosphate (LFP) batteries, renowned for their safety, long lifespan, and resistance to thermal runaway.
- Outperforms traditional battery chemistries with higher efficiency and lower maintenance needs.
- Optimized for Solar Integration
- Functions as a premier solar battery storage system, capturing excess solar energy and deploying it when sunlight fades.
- Enhances solar and battery systems by ensuring maximum utilization of renewable resources.
- Modular and Scalable Design
- Expandable architecture allows businesses to grow their battery storage capacity as energy needs evolve.
- Perfect for building a solar battery bank that adapts to multi-site or increasing demands.
- Smart Energy Management System
- Features an advanced Battery Management System (BMS) for real-time monitoring and optimization.
- Protects against overcharging, overheating, and inefficiencies, ensuring peak performance.
- Durable All-Weather Construction
- Rated IP54 for dust and water resistance, making it suitable for diverse climates.
- Thermal regulation technology maintains battery health in extreme temperatures.
- Versatile Grid and Backup Capabilities
- Supports commercial electricity grids with load balancing, peak shaving, and demand response features.
- Serves as a reliable battery backup for solar, keeping operations online during power disruptions.
Benefits of the a 110kW/174kWh for Commercial Energy
The DJENERGY 110kW/174kWh delivers a wealth of advantages for businesses invested in C&I energy solutions. Here’s how it elevates your energy strategy:
- Significant Cost Reduction
High electricity rates during peak hours can strain budgets. This battery storage system mitigates these costs by storing energy when rates are low and discharging it during expensive peak periods, offering substantial savings on commercial electricity bills.
- Enhanced Renewable Energy Efficiency
For businesses with solar battery systems, the DJENERGY 110kW/174kWh ensures every ray of sunshine translates into usable power. It stores surplus solar energy, making it available for nighttime use or cloudy days, maximizing your solar battery storage investment.
- Unmatched Reliability
Power outages can halt productivity and damage equipment. With its battery backup for solar, this system provides a seamless transition to stored power, keeping your operations running smoothly no matter the circumstances.
- Eco-Friendly Operations
By integrating with solar power with battery backup, this energy storage system reduces reliance on fossil fuels, lowering your carbon emissions and aligning with sustainability goals that resonate with customers and regulators alike.
- Adaptable Energy Control
Whether you’re managing a single facility or a sprawling industrial complex, the DJENERGY 110kW/174kWh offers the flexibility to tailor energy usage to your specific needs, making it a versatile solar battery bank for any scenario.

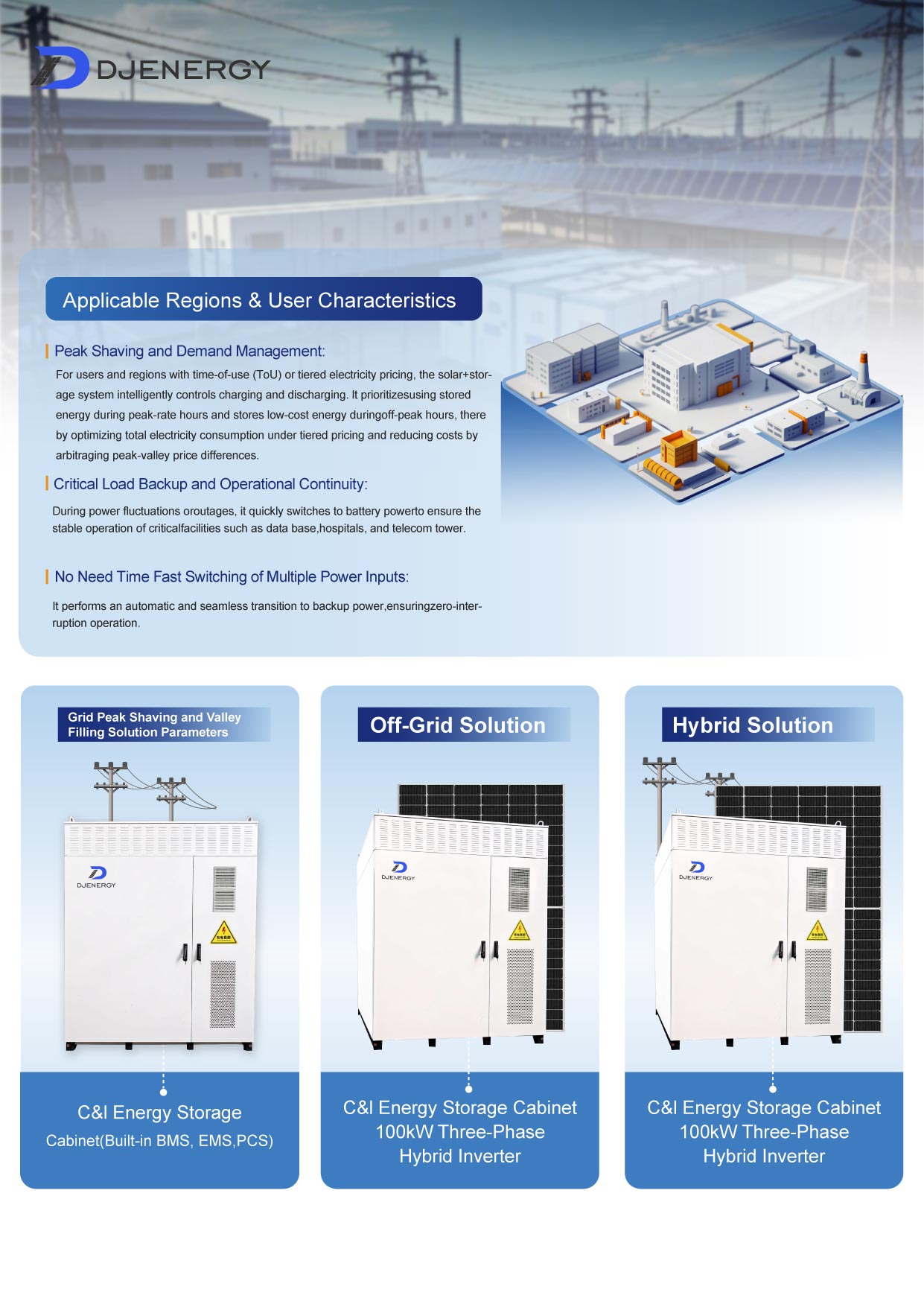

Applications of the DJENERGY 110kW/174kWh Battery Storage System
The DJENERGY 110kW/174kWh excels across a variety of C&I energy applications, proving its versatility as a battery storage system. Here’s where it shines:
- Industrial Operations
Factories and processing plants can rely on this solar battery storage system to power heavy machinery, reduce peak demand charges, and maintain production during grid failures.
- Commercial Properties
Retail centers, office buildings, and hospitality venues benefit from its commercial electricity management, ensuring consistent power for lighting, climate control, and customer-facing systems.
- Solar-Driven Enterprises
Businesses with solar and battery systems can amplify their renewable energy setups, using this solar battery bank to store and dispatch power as needed.
- Off-Grid Solutions
In remote locations or microgrid setups, the DJENERGY 110kW/174kWh provides a stable, independent power source, reducing dependence on diesel generators.
- Utility Partnerships
Participate in grid-support programs by supplying stored energy during high-demand periods, earning incentives while bolstering local commercial electricity networks.
Why the DJENERGY 110kW/174kWh Stands Above Competing Energy Storage Systems
With numerous energy storage systems available, the DJENERGY 110kW/174kWh distinguishes itself as a leader in C&I energy solutions. Here’s what sets it apart:
- Uncompromising Safety
The LFP battery design prioritizes safety, minimizing risks compared to other lithium-based systems, making it a trusted choice for battery storage.
- Extended Lifespan
Boasting over 7,000 cycles, this solar battery storage system offers years of dependable service, reducing long-term replacement costs.
- Tailored for Solar Synergy
Unlike generic battery storage systems, it’s specifically engineered for solar power with battery backup, ensuring optimal compatibility and performance.
- Cost-Effective Growth
Its scalable design lets you start small and expand as needed, avoiding the expense of oversized systems upfront.
- Field-Tested Reliability
Proven in real-world commercial energy deployments, the DJENERGY 110kW/174kWh delivers consistent results across industries.
How the DJENERGY 110kW/174kWh Elevates Solar Battery Systems
For businesses with existing solar battery systems, this battery storage system takes efficiency and resilience to new heights. Here’s how it enhances your setup:
- Strategic Energy Shifting
Store solar energy during off-peak hours and deploy it during peak demand, slashing costs and optimizing your solar battery storage.
- Robust Backup Power
Paired with solar panels, this battery backup for solar ensures uninterrupted operations, protecting against grid instability or weather disruptions.
- Boosted ROI
By capturing and using more solar energy, the DJENERGY 110kW/174kWh increases the financial benefits of your solar and battery system.
- Precision Management
The intelligent BMS fine-tunes energy distribution, ensuring every watt is used effectively within your solar battery bank.
Installation and Maintenance Made Simple
Deploying the DJENERGY 110kW/174kWh is streamlined for businesses:
Installation
- Evaluation: Experts assess your site and energy profile.
- Setup: Integrates with your solar battery system or grid connection.
- Activation: Quick commissioning for immediate use.
Maintenance
- Minimal Upkeep: LFP batteries and BMS reduce maintenance demands.
- Monitoring: Remote diagnostics keep performance in check.
- Support: DJENERGY provides expert assistance for longevity.
Who Should Choose the DJENERGY 110kW/174kWh?
This solar battery storage system is perfect for:
- Industry Leaders: Seeking to optimize commercial electricity and reduce overhead.
- Green Innovators: Committed to solar power with battery backup for sustainability.
- Operations Managers: Needing a battery backup for solar to ensure uptime.
- Energy Strategists: Enhancing solar and battery systems for competitive advantage.
The Future of Commercial Energy with DJENERGY
As businesses face rising energy costs and environmental pressures, energy storage systems like the DJENERGY 110kW/174kWh are essential for staying ahead. By merging solar battery storage with C&I energy management, it offers a path to efficiency, resilience, and profitability.
Ready to redefine your energy approach? The DJENERGY 110kW/174kWh is your key to unlocking the full potential of commercial electricity and renewable power.
